Snap Frame LED Light Box

Snap Frame LED Light Box - Indoor Wall Mounted

Model:LIS A1-6090U (618x915mm)

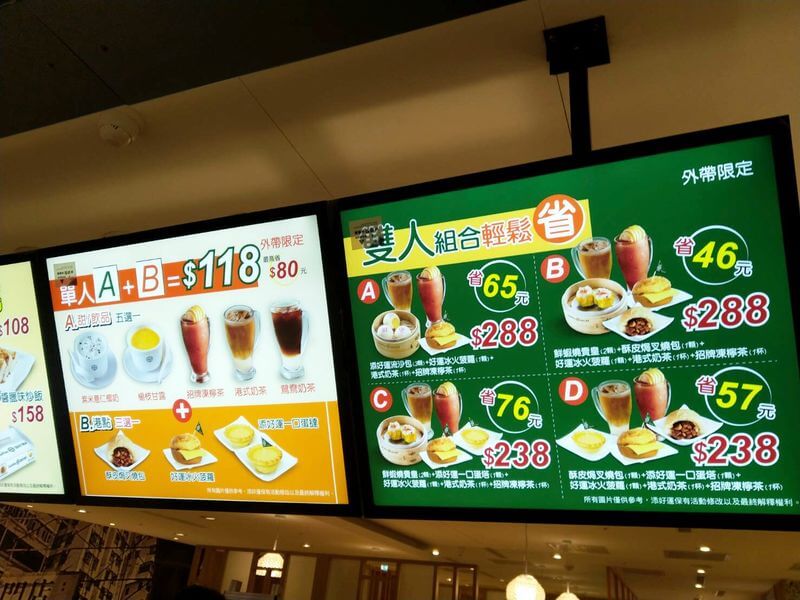

Menu boards
Trade show displays

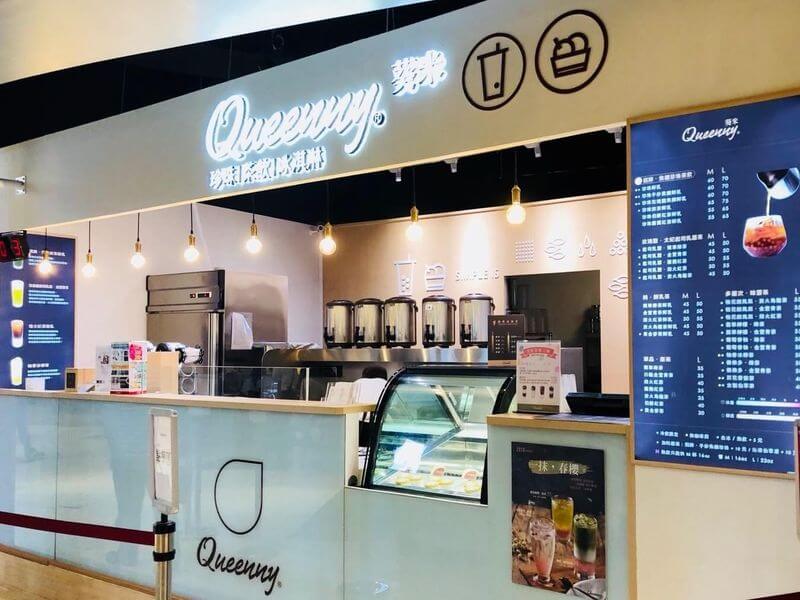

Retail shop display stands and cases
Download Add to inquiry

LIGHTEK snap frame LED light boxes offer a vibrant and modern solution for showcasing menus, trade show displays, and retail signage. These sleek light boxes are available in 618mm x 915mm portrait or landscape orientation, boasting a thin 20mm frame for a minimalist aesthetic. The long-life LEDs ensure low maintenance and brilliant illumination, while the laser-engraved light guide plate guarantees even light distribution. Choose from anodized silver or black frames, with custom colors available for larger orders. Installation and graphic changes are effortless with the snap-open frame design – simply flip open the sides, insert your graphics, and snap closed for a refreshed look in seconds. LIGHTEK snap frame LED light boxes: where brilliance meets simplicity.
menu board lightboxLED display board

1. 618mmx915mm portrait or landscape.

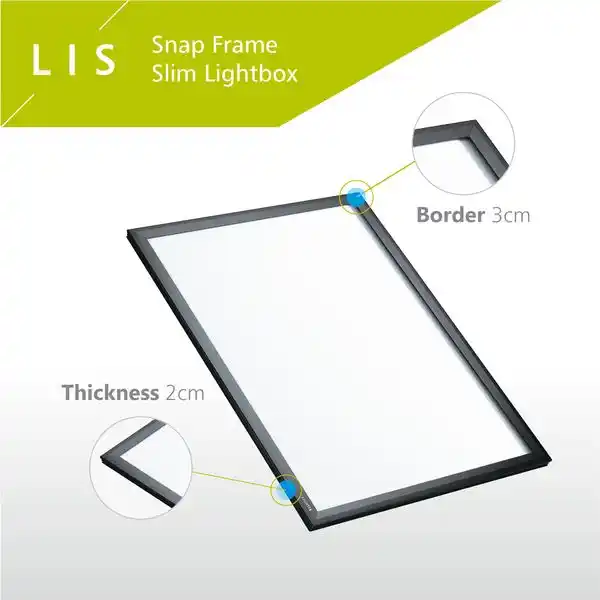

2. Thin frame profile only 20mm thick.

3. LED's have a long life with low maintenance.

4. Laser engraving light guide plate.

5. Our two standard colors are anodized silver and black, and we can also make any color with larger quantities.

6. Easy Installation.

7. Fast graphic changes, simply flip open sides, insert graphics, and snap closed.

8. Made to order, any size. Custom sizes up to 120cm x 240cm.


Overall Frame Size 618x915mm
Backlit Graphic Size 602x899mm
Visual Area 558x855mm
Thickness 20mm
Frame Rail Width 30mm
Weight 4.2kg
Material Aluminum Snap Frame
Finish Anodized
Frame Color Silver and Black and Customized
Light Type Edge-lit LED (With LGP)
Color Temperature 7000K (White Light)
Adapter Output 12V/23W
Orientation Mounts horizontally or vertically
How to Change Graphics

The snap frame opens on all sides. Simply snap open each frame edge, insert the backlit graphic and snap the frame edges closed. This can be done on the table or secured the wall.

LIS Snap Frame Slim Lightbox Installation Instruction

How to Install the Lightbox

There are holes drilled in the inside corners of the frame and may be mounted directly to wall without using the wall hanging bracket.
